Fields



Documentation home



Introduction. 1

Fields View. 1

Fields toolbar 2

Right click menu. 2



See also: Field Properties, Field Control, Field Types, Field Display Types

Introduction



A field represents a name/value pair. The value might have been obtained by displaying the field to the user, it might have come from an external source such as a database or a Web Service, or it might have been set programmatically. A field has many attributes including name, value, type, display type.... and many more.



Fields can be added to Forms, Application Layouts, Components or Web Services in the Fields View, which can be found in the top right of each editor.



A Field can be displayed to the user using a Field Control on a Form, Application Layout or Component. Note that when a field is displayed, the display type (textarea, checkbox, dropdown etc…) is a property of the Field, not the Field Control.



Fields View

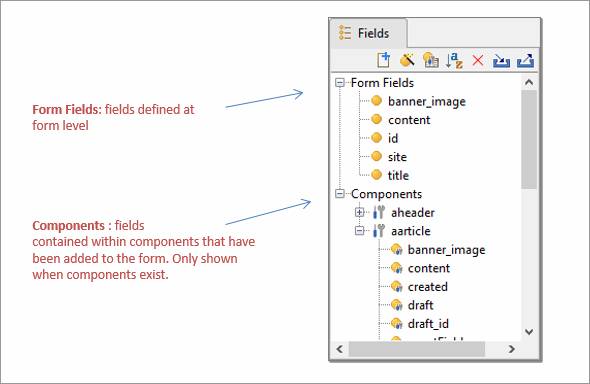

The Fields View shows all the form’s fields. Any fields from components that have been added are shown separately under the Components heading. Opening an individual component shows the name of each field as configured in the source component, moving the mouse over the field will show the fully prefixed name of that field in the form. The diagram above shows the fields for a form, but the display is very similar for all other entities that can have fields i.e. Application Layouts, Components, Rest Services, Integration Services and Workflow Processes; the only difference is that the heading name Form Fields changes. Application Layout fields are not shown on the Form’s Field View.



Any new fields are added to the top of the Form Fields section, and can be re-sorted into alphabetical order by clicking the Sort fields icon .



Clicking on a field in the list displays the Field’s properties in the properties view.



A field can be renamed by double clicking on the field name.



To select a range of fields hold down the Shift key. To select multiple non-contiguous fields hold down the Ctrl key.

Fields toolbar

Following functions are available; shortcut keys shown in parentheses. Please note that short cut keys apply only when the Fields View panel is in focus.



(Ctrl N)

Add a single new field

(Alt Ctrl W)

Add and import multiple fields using the Field wizard

(Ctrl I)

Insert a Fields & Tables Component



Sort fields in alphabetical order

(Delete)

Delete selected field(s). This also removes any field controls that refer to the deleted items.



Import fields from an external resource



Create an external resource



Right click menu

Following functions are available when one or more fields are selected; shortcut keys shown in parentheses. Please note that short cut keys apply only when the Fields View panel is in focus.



New field

(Ctrl N)

Add a single new field

Add and import multiple fields

(Alt Ctrl W)

Add and import multiple fields using the Field wizard

Add component

(Ctrl I)

Insert a Fields & Tables Component

Delete

(Delete)

Delete selected field(s). This also removes any field controls that refer to the deleted items.

Create Resource



Create an external resource

Cut

(Ctrl X)

Same as copy, but also deletes selected field(s).

Copy

(Ctrl C)

Copies selected field(s) to the clipboard.

Paste

(Ctrl V)

Paste is only enabled when fields have previously been copied to the clipboard. You can copy/paste fields within a single form or component, or between forms and/or components.



Fields are automatically renamed when a field with the same name already exists in the target form; this is done by adding an underscore and a number to the field name.



Field mappings are retained when a mapping to the associated resource field does not already exist in the target form. Note that mappings are retained even when the corresponding resource is not part of the target form’s business view. This means that you can paste fields, then later add the resource to the target form’s business view and mappings will not be lost.



All associated texts are also copied and renamed as required.



Dynamic list field mappings are retained only where the mapped fields also exist on the clipboard or when this is a cut/paste operation within a single form.



When the pasted fields include one or more deployed component fields, the fields are pasted as if they are not part of a component and double underscores in all names are changed to single underscores.

References

(Alt Ctrl R)

Displays references to the selected field in the References Panel
