Application Layouts

Documentation home

Introduction. 1

Creating an Application Layout 2

Creating a blank Application Layout 2

Downloading an Application Layout 2

Using an Application Layout 3

Application Layout Entity. 4

Application Layout Properties 4

Styling an Application Layout 5

Application Layout Events 5

Programming Application Layouts 6

Changing an Application Layout at Runtime. 6

Testing Application Layouts 6

Deleting Application Layouts 6

See also: Application Layout Editor, Themes, Working with Forms, Server-side Events

Introduction

An Application Layout defines the Theme and structure of all pages in a Form. It can be associated with any number of Forms and so provides a consistent look and feel to your application.

For example an Application Layout may provide:

• A header.
• Some navigation.
• A footer.

Application Layouts can be configured in a Project’s Properties and used by all Forms in that Project. Alternatively, a Form can be directly associated with an Application Layout.

Controls can be added to an Application Layout’s Page Control to build the overall structure (Headers, Footers etc…) of your application. An Application Layout must contain a single Main Control, which marks where a Form’s content will be added.

An Application Layout:

• Maintains its own state, so if an Application Layout’s state is changed it is changed for all Forms that use it.
• Is represented in the Entity Tree by the icon.
• Can contain other Entities (Scripts, Resources and Web Resources), which can then be used by the Application Layout.
• Is made up of Fields, Tables, Controls, Texts, Resources, Scripts and Data Connectors.
• Cannot contain Components or Widgets.

Creating an Application Layout

To create a new Application Layout either:

· Select File à New à Application Layout from the menu.

· Right-click on a Project or Folder and select New à Application Layout

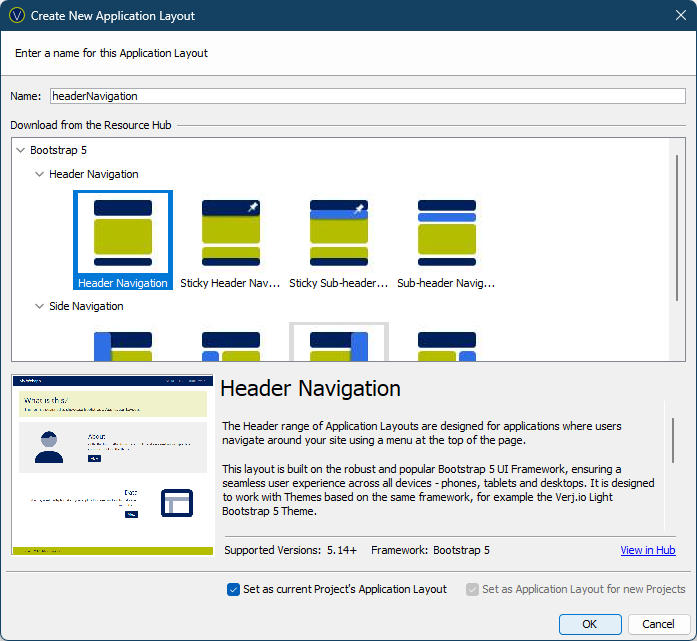

The resulting New Application Layout Dialog provides the following options:

• Name: The name of the Application Layout.
• Set as current Project’s Application Layout: Updates the current Project’s Application Layout to use the Application Layout created.
• Set as Application Layout for new Projects: Updates the New Projects Application Layout property in the Workspace Preferences. All new Projects will use this Application Layout by default.

Using this dialog you can either create a blank Application Layout or download a ready made Application Layout from the Verj.io Resource Hub.

Creating a blank Application Layout

Entering a name and clicking OK (without selecting an Application Layout to download) will create a blank Application Layout at the desired location.

Downloading an Application Layout

Select one of the Application Layouts available on the Verj.io Resource Hub to download and optionally provide a new name.

A description and an image gallery are displayed for the currently selected Application Layout. More information about the Application Layout is available on the Verj.io Resource hub, which can be opened in a browser by clicking View in Hub.

Using an Application Layout

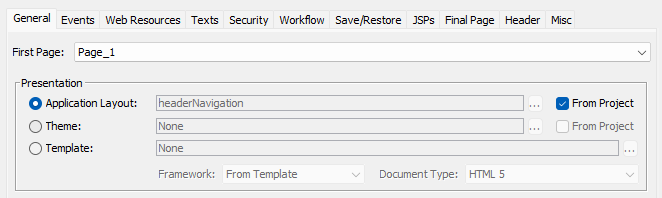

A Project can be configured to use an Application Layout in its Project’s Properties dialog. Forms can use their Project’s Application Layout by selecting the From Project checkbox in the General Tab of its Form Properties dialog.

Changes to a Project’s Application Layout are automatically reflected in all the Forms that use it.

The Workspace Preferences dialog can be used to automatically configure new Projects to use an Application Layout, as well as automatically configuring all new Forms to use their Project’s Application Layout. These settings help to ensure a consistent look and feel for your application.

A Form can also be set to use a specific Application Layout by selecting the Application Layout radio button and using the … button to select an Application Layout from the Workspace.

Application Layout Entity

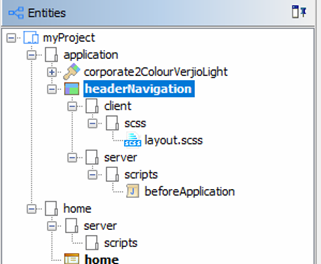

To edit the Application Layout, double-click the icon in the Entity tree. This will open the Application Layout Editor and expand the Application Layout Entity revealing its contents.

An Application Layout Entity can contain Folders, Server Resources Folders, Server-side Scripts, Lists, Resources, Themes, Web Resources and Texts.

An Application Layout displays paths to entities from inside itself as applicationLayoutName:/path-to-entity.

Application Layout Properties

Application Layouts have many features that can be configured in the Layout Properties dialog.

This dialog is split into 4 tabs:

• General Properties
• Event Properties
• JSP Properties
• Web Resource Properties

Styling an Application Layout

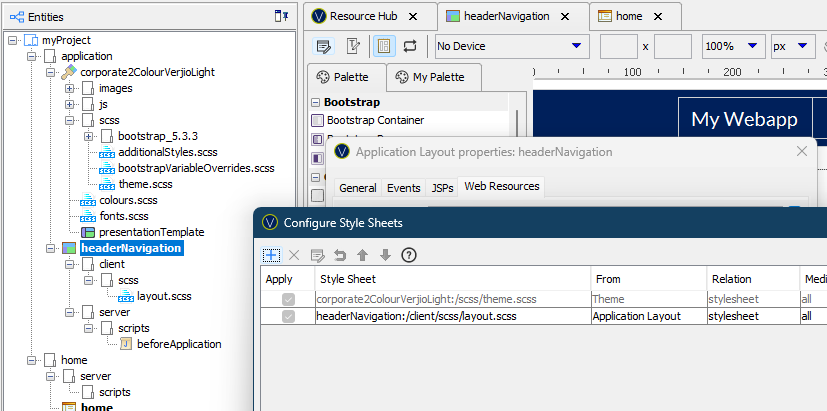

Application Layouts can be styled by selecting a Theme in the Application Layout properties. Selecting a Theme will determine the style of the Application Layout, including colours, fonts and UI framework.

An Application Layout displays paths to entities from a Theme as From Theme:/path-to-entity.

Application Layout Events

Application Layouts support the following events:

Event	Typical Use
Application Layout Events
Before Application	To perform any preliminary processing before the Application Layout is first displayed to the user e.g. load information from a database or some other external system.
Control Events
Validation	To perform validation of data entered by the user.
On Click	Used to perform specific processing when the user clicks something – e.g. a button, hyperlink, image, tab, menu item etc.

(See Server-side Events for more information)

Programming Application Layouts

Application Layouts can only access state data within its own context. The JavaScript API can be accessed using the appLayout API variable e.g.:

appLayout.fields.username.value = system.securityManager.userName;

Note that the appLayout is optional within the context of an Application Layout and that the following would have the same result:

fields.username.value = system.securityManager.userName;

Click here for more details.

Changing an Application Layout at Runtime

An Application Layout can be changed at runtime using the JavaScript API:

• projects.setAppLayoutPath(path_to_app_layout): Updates all Projects’ Application Layout property to the specified Application Layout. All Forms using its Project’s Application Layout are automatically updated to reflect the new Application Layout.
• projects.<project_name>.setAppLayoutPath(path_to_app_layout): Updates the specific Projects’ Application Layout property to the specified Application Layout. All of this Project’s Forms using their Project’s Application Layout are automatically updated to reflect the new Application Layout.
• form.setAppLayoutPath(path_to_app_layout): Updates the current Form’s Application Layout to the one specified.

It is recommended that all Application Layouts are added to the same Project in your application, to ensure that the Forms can access the new Application Layout. If the Application Layout switched to is in a different Project to the current Application Layout, then the new Application Layouts Project must be linked to by the Form’s Project.

Testing Application Layouts

Application Layouts can be tested by clicking the Test icon on the Main Toolbar.

Deleting Application Layouts

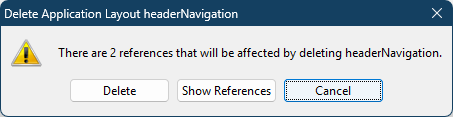

To delete an Application Layout right click on it in the Entity Tree and select Delete. If there are references from other Entities, such as Forms or Projects, a warning dialog will be displayed:

You have the option to show the entities that reference it or to simply delete it. Simply deleting the Application Layout may cause unexpected behaviour in the entities that currently reference it.
